Effect Tracking

Monitor effect execution with start, emit, complete, and error events.

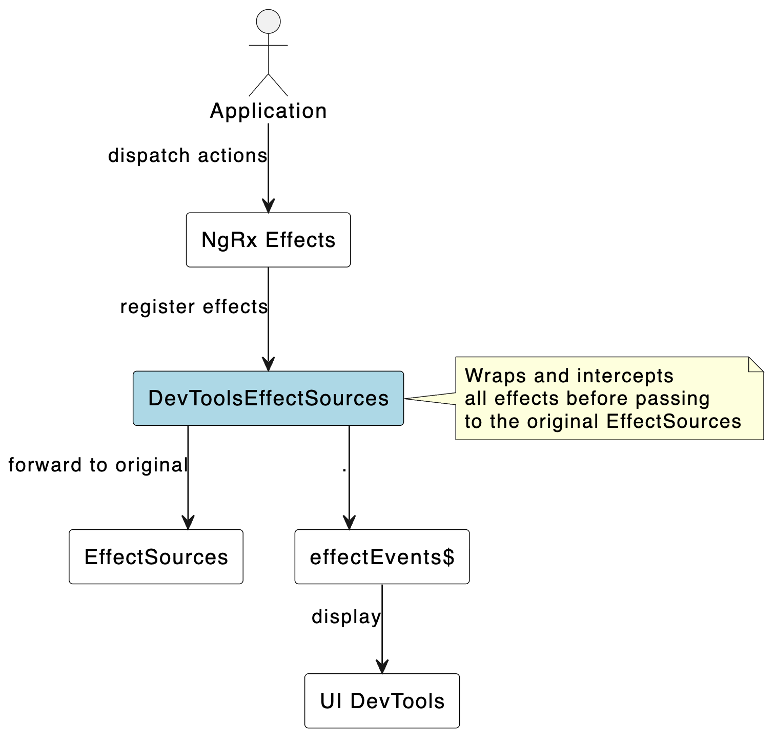

How it works

Effect tracking is powered by DevToolsEffectSources, which extends NgRx's EffectSources class to instrument effects at registration time.

Implementation details

1. Effect Registration Override - DevToolsEffectSources overrides addEffects() to intercept effect classes when registered.
2. Metadata Extraction - Effect properties are identified by the __@ngrx/effects_create__ metadata key from createEffect().
3. Observable Instrumentation - Each effect's observable is wrapped with tap() to capture emissions and errors.
4. Lifecycle Events - Events are emitted for: emitted (action dispatched), executed (non-dispatch effect), error.
5. Duration Calculation - Time is tracked between emissions to calculate effect duration.
6. ReplaySubject Buffer - Events are buffered in a ReplaySubject (100 items) for late subscribers.

Effect states

State	Description
Started	Effect has begun execution
Emitted	Effect has dispatched an action
Completed	Effect has finished successfully
Error	Effect encountered an error

Effects panel

The dedicated Effects Panel shows all effect executions with:

• Effect name and class
• Duration of execution
• Current status
• Actions emitted
• Error details (if any)

warning

provideEffects() must be called before provideNgrxDevTool() so effects are registered before the DevTool instruments them.

Configuration

Ensure effect tracking is enabled:

provideNgrxDevTool({
  trackEffects: true
})
